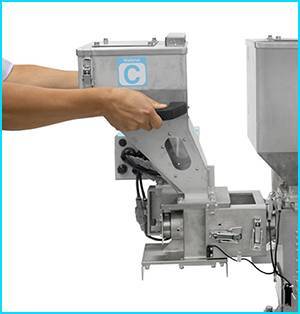

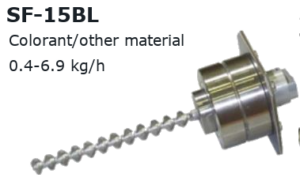

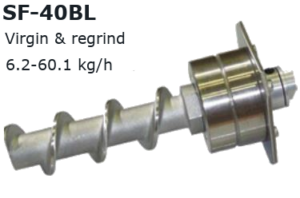

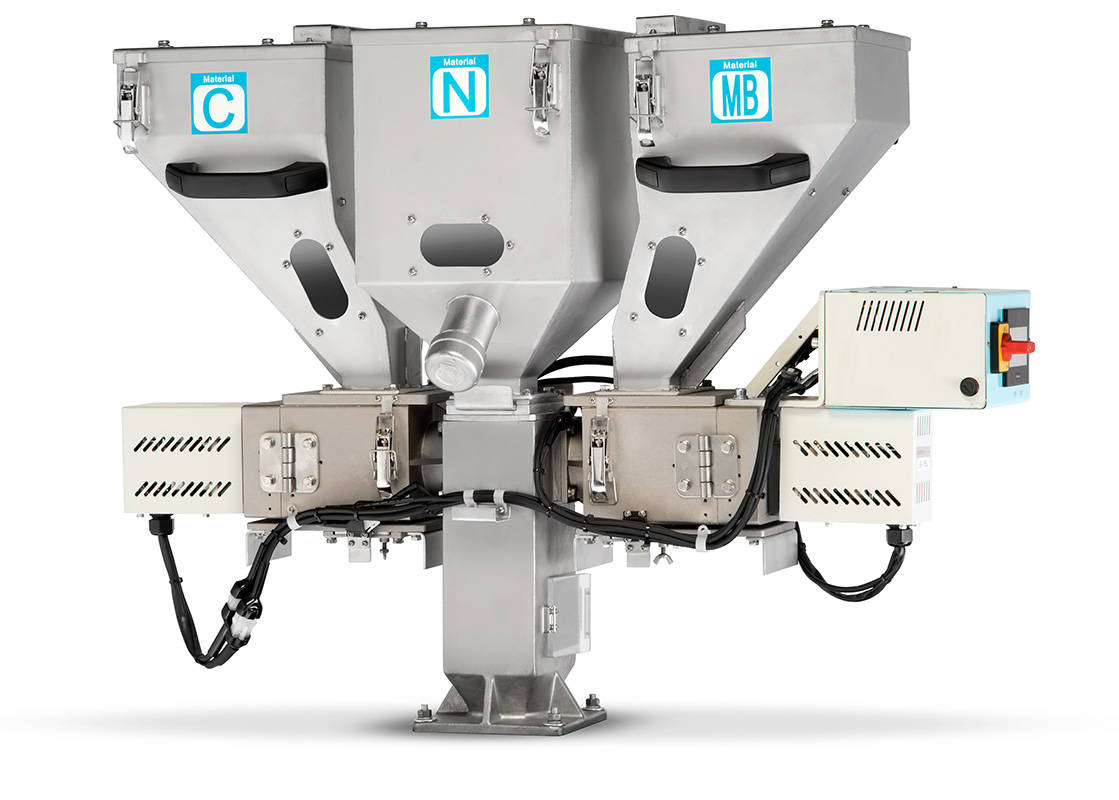

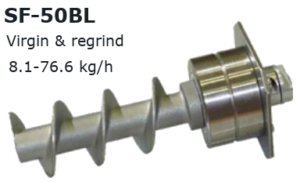

Overview Specifications Brochure Technical assistance? Call (+49) 69 1534 3013 JCD3 Volumetric blender accurately mixes virgin, regrind, color concentrate and additives JCD3-thumbnail-1JCD3-thumbnail-2JCD3-thumbnail-3 Compared to floor-mounted blenders, the JCD3 volumetric blender prevents materials of different weights, sizes or shapes from separation during loading. Materials are blended completely on the molder ensuring the right mix is delivered to the process. Synchronizes measuring with blending The JCD3 synchronizes measuring with blending, metering out materials that meet your presets, quickly and accurately Faster color concentrate changes Moving on to the next job is as easy as lifting the cover on the upper discharge opening and blowing out any residue with an air compressor. Regrind and colorant hoppers are modular and can quickly be pulled, cleaned and reinstalled.Quick-change auger design makes cleaning and exchanging augers a snap. Customized to your specific needs With three different auger feeders and two JCD3 models to choose from, you can be sure of getting the volumetric blender system that best meets your needs. Auger Feed Options Quickly clean and rotate resins, regrind and colorant. Hopper easily slides out for cleaning, so unit is back in service quickly. Quickly pull auger for cleaning, or switch augers for different back configuration. Discharge port at bottom of hopper lets you quickly remove remaining material. JCD3 Model JCD3 JCD3-102-U JCD3-103-U Processing capacity 100 kg/h Measurement type Volume measuring achieved through auger feeder Regrind method Syncrhonized measurement conducted through auger feeder Measuring point 2 3 Total volume of hopper 12L + 9L (Virgin + MB material) 12L + 9L + 9L (Virgin + MB material + Regrind) Feeding unit Auger feeder SF-50 BL (Virgin material) : 8-76.6 kg/h Auger feeder SF-40 BL (Virgin material) : 6.2-60.1 kg/h Auger feeder SF-15 BL-36 (MB/additional material) : 0.4-6.8 kg/h Measurement accuracy - MB material SF-15 BL-36 ± 3% (.09 kg) Measurement accuracy - regrind materials SF-50, SF-40 BL ± 13% (.009 kg) Suitable materials - virgin Pellet: strand cut ∅ 1.5 to 5.8 mm, 5.8 mm long or less; square pellet 1.5 to 5.8 mm Suitable materials - MB materials Pellet: bead type ∅ 1.5 to 5.8 mm; bridge-free material for hopper material with uniform shape and size Suitable materials - regrind Safety solution network (open mouth: 35 mm x 35 mm with bridge-free material.) Mixing ration: 40% maximum Volume per batch 250 grams MB ratio 20 - 50 Power 380V 50Hz 3P Apparent power 40VA 70VA Dimension 585 × 336 × 668 mm 866 × 336 × 668 mm Weight 23 kg 31 kg Available options Alarm light, alarm buzzer, lower level alarm, alarm output signal, material loading system, tank lid cover
