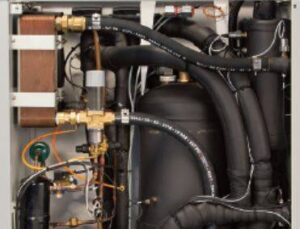

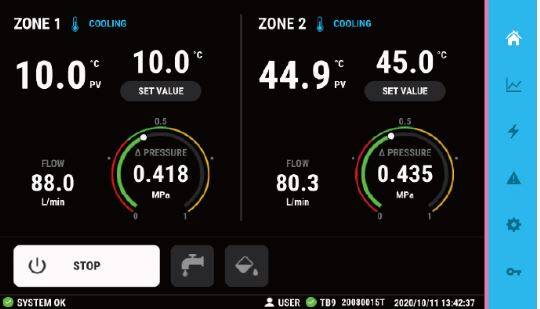

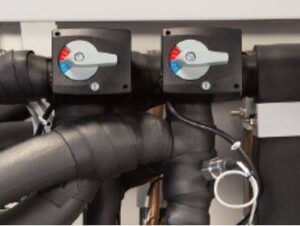

Overview Specifications Brochure Technical assistance? Call (+49) 69 1534 3013 MCX2 Wide range temperature controller with error margin of only ±0.3°C The new MCX2 presents a piping-less structure, so that it can optimize its usage also in small spaces. The control on mold temperature is performed within a high range and with a particularly high accuracy, as it presents only a margin of error of ±0.3°C. Refrigeration happens through the R410A, which is provided with an ozone depletion factor of 0. Moreover, the MCX2 offers a mold medium draining function. Friendly for the environment Minimal temperature fluctuation thanks to stable control of the flow rate valve. Ensure space-saving with the pressure-resistant hose and the smaller water tank. Prevent contamination of circulating water thanks to the cooling water filter. Large display for better operability Thanks to the 7-inch touch-screen panel, operability gets highly improved: it´s possible to keep under check various settings and conditions at glance in once. It can also visualize on a graph necessary operation data, like temperature and pressure. Furthermore, it can show on-screen notifications of alarm content. Contained piping-less structure The new MCX2 is equippd with a modern piping-less system, which is a benefit for the outer dimensions: the device results in being more contained and easy to fit also in smaller spaces. Unique options available Manifold Rotating light Power cord Self-cleanable filter MCX2 MCX2-G3 03 04 06 03D 04D 06D Power supply Voltage AC400V 50Hz/60Hz 3ø Apparent power 12.9 kVA 16.7 kVA 18.9 kVA 20.6 kVA 21.8 kVA 24.0 kVA Braker capacity 50A 60A 75A Condenser cooling water Flow rate (27°C) 30 L/min 45 L/min 60 L/min 30 L/min 45 L/min 60L/min Flow rate (35°C) 45 L/min 60 L/min 75 L/min 45 L/min 60 L/min 75 L/min Pressure 0.15 - 0.60 MPa Medium Clean water Operating temperature range 8-90°C Cooling capacity (50Hz) 8°C 7.4 kW 11.2 kW 14.8 kW 7.4 kW 11.2 kW 14.8 kW 15°C 9.2 kW 13.8 kW 18.3 kW 9.2 kW 13.8 kW 18.3 kW 20°C 10.6 kW 16.0 kW 21.2 kW 10.6 kW 16.0 kW 21.2 kW Control temperature (60Hz) 8°C 8.5 kW 12.9 kW 16.7 kW 8.5 kW 12.9 kW 16.7 kW 15°C 10.5 kW 15.9 kW 20.6 kW 10.5 kW 15.9 kW 20.6 kW 20°C 12.2 kW 18.4 kW 23.8 kW 12.2 kW 18.4 kW 23.8 kW Heater capaity 6 kW 9 kW 6 x 2 kW Medium tank 23L Refrigerant gas R410A Compressor output 2.25 kW 3.38 kW 4.5 kW 2.25 kW 3.38 kW 4.5 kW Circulation pump output 0.75 kW Pipe connections diameter Medium feed & return port G1 (25A) G1 - 1/4 (32A) G1 x2 (25A x2) G1 - 1/4 x2 (32A x2) Supply water port G1/2 (15A) Overflow G1 (25A) Cooling water inlet port G1 (25A) + filter is standard equipment Cooling water outlet port Cooling water outlet port G1 (25A) Cooling water filter Single filter Outer dimension Width 450mm Depth 1049mm Height 1427mm Product weight 240 kg 245 kg 270 kg 275 kg Alarm display Medium drop, pump. Compressor overload, cooling water shortage Overheat, sensor failure, high pressure, low pressure, freeze prevention. Pressure gauge Control panel digital indication Check out the MCX2´s potential! Are you interested in this product and want to know more? Get in contact with us here!
