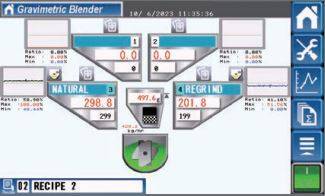

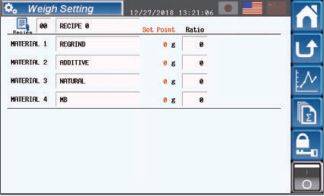

Overview Specifications Brochure Technical assistance? Call (+49) 69 1534 3013 JCBG2 Gravimetric blender with higher measuring accuracy. The new JCGB2 provides extreme precision when it comes to measuring and mixing the correct amount of material. Each time the fed material can have an amount as low as 15g, and the target value is corrected and adjusted according to the actual feed amount. The unique shape of the hole valve, which is inclined, helps also reducing jamming: it moves up and down to cut out the material, reducing the amount that is supplied. Easy maintenance Since the JCGB2´s concept is of an item that should sit on top of the injection molding machine, tools aren´t necessary when it comes to maintenance time: the main units are easy to remove and re-install simply by hand. Moreover, the front door is very convenient to open and close. In order to support this ease of maintenance, the material supply valve is located inside of the material hopper. Touch-screen panel The operational control panel is rich in features and options to constantly monitor the JGB2´s functioning, with the aim of ensuring a uniform, high-quality molding process: Weight setting screen Actual data for each batch displayed as trend graphs Data of up to 500 batches stored (including actual values, deviations, and alarm history) Traceability of molded products thanks to USB-transfer to a PC No separation of materials! The JCGB2 sits directly on the injection molding machine, thus the material doesn´t have to undergo a second conveying.In this way it doesn´t risk separating into layers nor remaining stuck into the hoses: production process can proceed smoothly without material waste or quality issues in the final product. JCBG2 Model JCGB2-06 Power supply AC 100-240V, 50/60Hz 1P Apparent power 150 VA Air flow rate 3 L/min Max measurement capacity 60 kg/h Weighing method Batch type mass weighing by load cell Number of components 2 to 4 materials Volume per Batch 500g Material hopper Color and additives A25: ø25mm slanted valve Natural and regrind B40: ø40mm vertical valve Entire volume of material hopper 10L Entire volume of measuring hopper 2L Discharging method Flap damper Blending section Blending method Mixing by rotatory actuator (power source: air) Effective volume 2L Product weight 50kg Outer dimensions WxDxH 560x560x710 mm Standard features Alarm indicator; alarm buzzer; alarm signal (closed during alarm, no-voltage contact); running signal (closed during operation, no-voltage contact); 7-inch color touch panel; external USB memory; MODBUS/TCP communication; VNC connection for remote operation. Options HMI stand; cylinder cover; lower level limit meter; air purge; blow gun; pressure sensor; floor frame; heat resistant specifications; pressure feed; discharge chute. Check out the JCGB2´s potential! Are you interested in this product and want to know more? Get in contact with us here!
